BRIEF INTRODUCTION OF WATER PRODUCTION LINE
KEY FEATURES OF HOT FILLING LINE
| Water filling line can apply to fill natural spring water, purified water, carbonated water, flavored water into PET bottle by changing few spare parts. | Water filling line production capacity usual is in 1,000-36,000bph, 0.25-2.5L PET bottles are available. | Automatic water filling machine adopts Rinsing / Filling / Capping 3-in-1 technology, PLC control, touch screen, it is majnly made of SUS304/ SUS316. |
| Pivotal electrical parts use Mitsubishi, OMRON, and SIEMENS to water filling production line. | The whole productio filling line accuracy is more or less than 1%. | We can provide complete beverage ideal solution - blowing. filling. packing for PET bottle. |
BRIEF INTRODUCTION OF HOT FILLING JUICE PRODUCTION LINE
| Model | CGF8-8-3 | CGF14-12-4 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 |
| Capacity(500ML) | 2000-3000BPH | 3000-4000BPH | 6000-8000BPH | 8000-10000BPH | 12000-15000BPH | 16000-18000BPH |
| Floor area | 300㎡ | 400㎡ | 600㎡ | 1000㎡ | 2000㎡ | 2500㎡ |
| Total power | 100KVA | 100KVA | 200KVA | 300KVA | 450KVA | 500KVA |
| Opertor workers | 8 | 8 | 6 | 6 | 6 | 6 |
| Project budget | USD 45,000-55,000 | USD 65,000-75,000 | USD 150,000-200,000 | USD 250,000-300,000 | USD 400,000-450,000 | USD 550,000-650,000 |

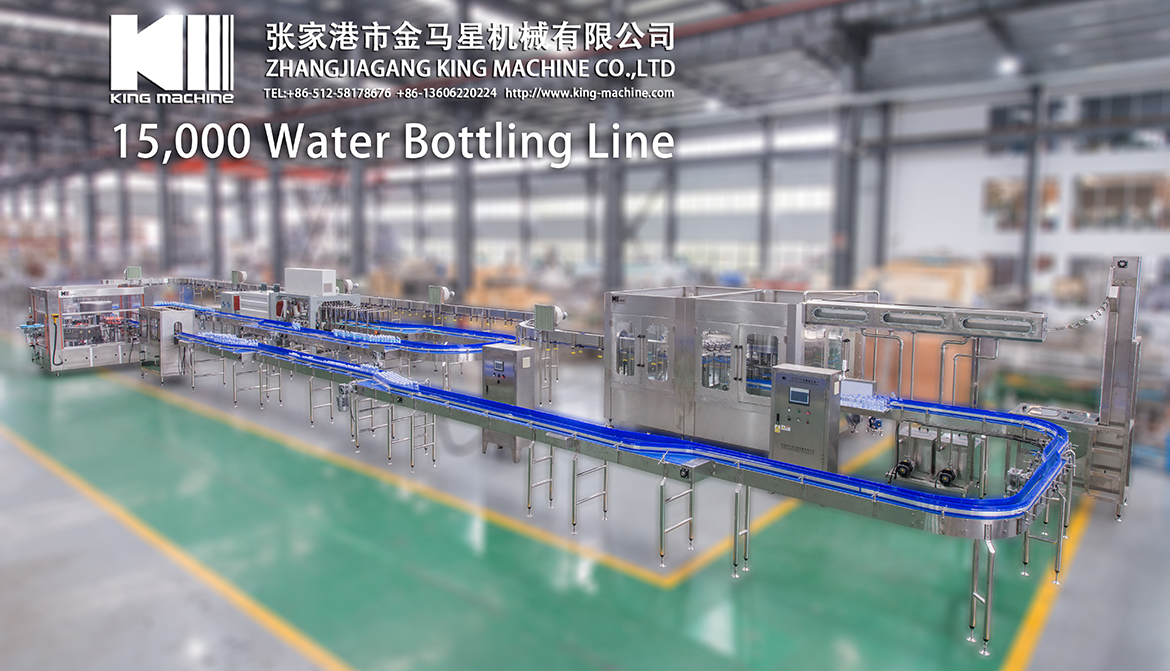

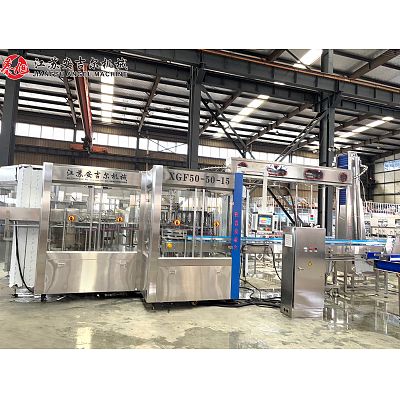

Layout-pet Mineral Water Production Line

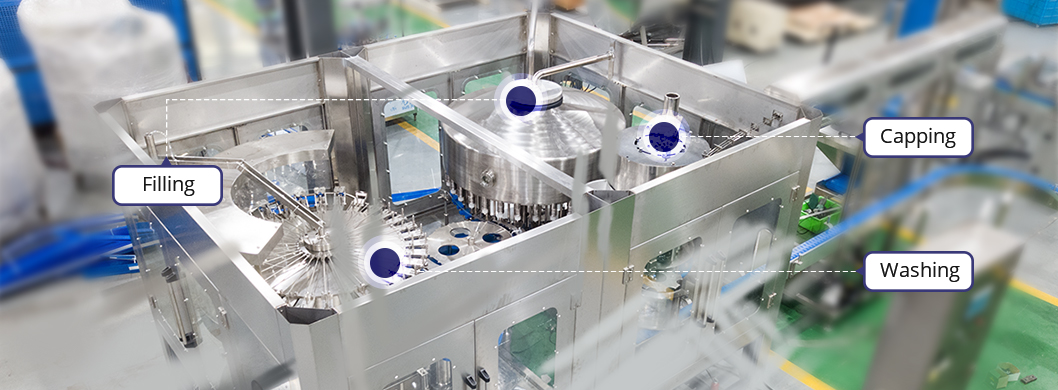

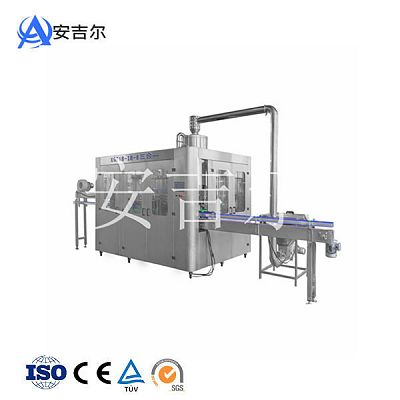

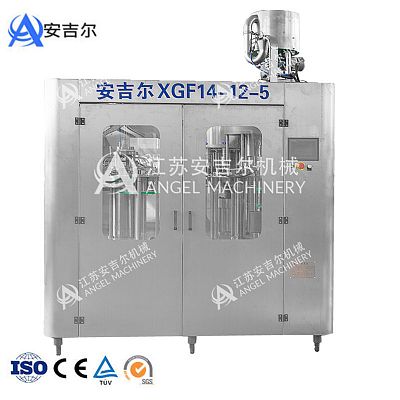

This water bottling machine line is mainly used for filling drink water. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The micro pressure filling operation of the new type is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.

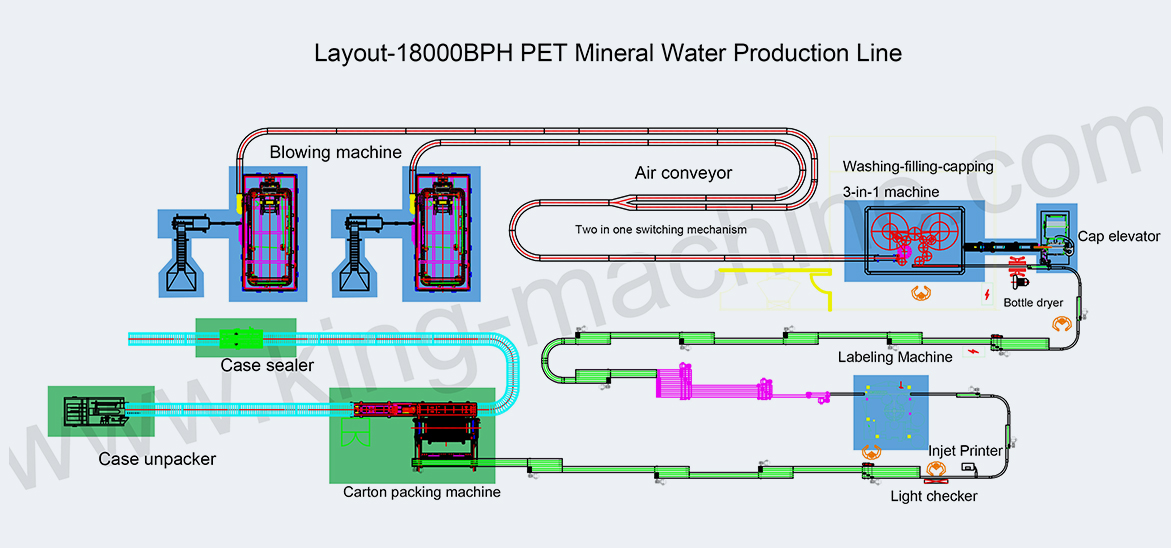

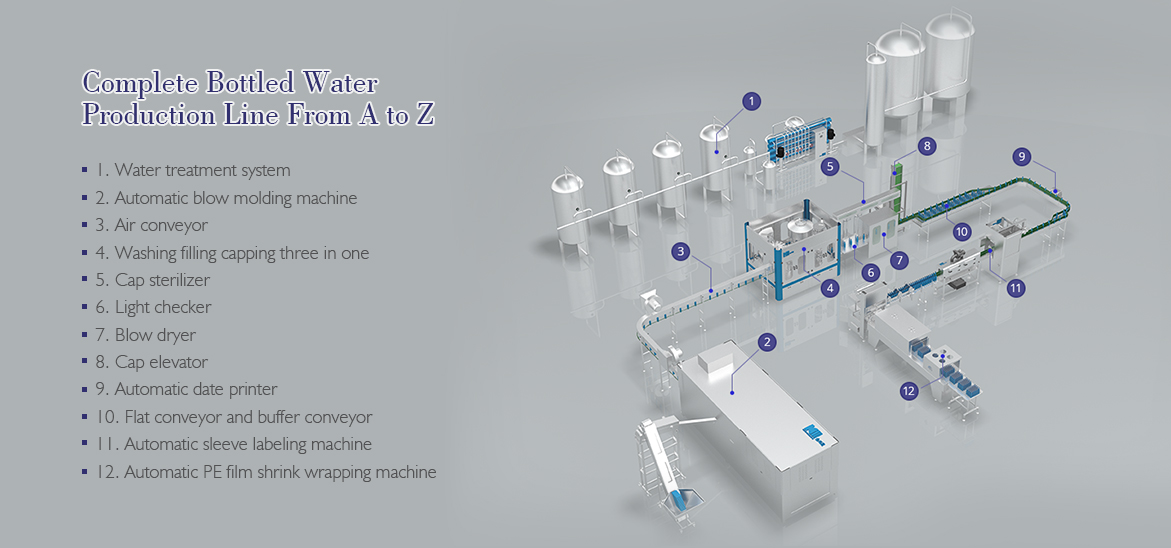

FLOW DIAGRAM OF LAYOUT-PET MINERAL WATER PRODUCTION LINE

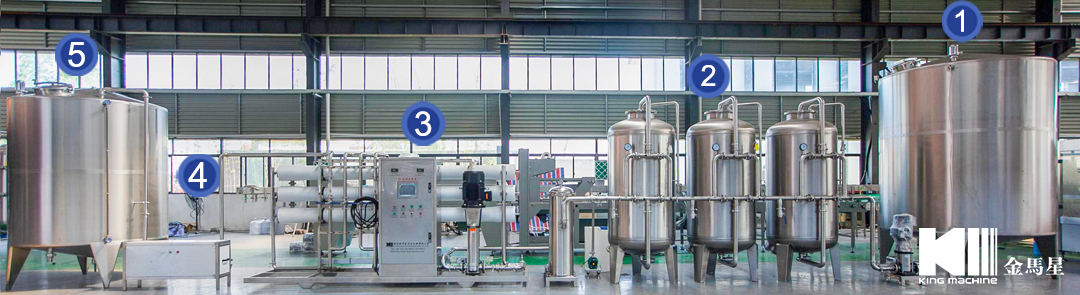

Water Treatment System
Raw water tank + Raw water pump
Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
Reverse Osmosis (one level)
UV sterilizer
Finished water tank + Pure water pump
Stainless steel high pressure film shell
All kinds of capacity indicator, pressure indicator, electricity
magnetic valve, balance device and pipe valve system
Online type pressure auto self-protection device
Online type electricity indicator (with stable compensation)
System frame
Bottle Blowing Machine
Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. It is necessary for the water filling production line, 330ml-1L water filling machine line.
Bottle Sleeve Labeling Machine
- Heat shrink sleeve labeling machine
- OPP Hot melt labeling machine
- PVC label stick labeling machine
